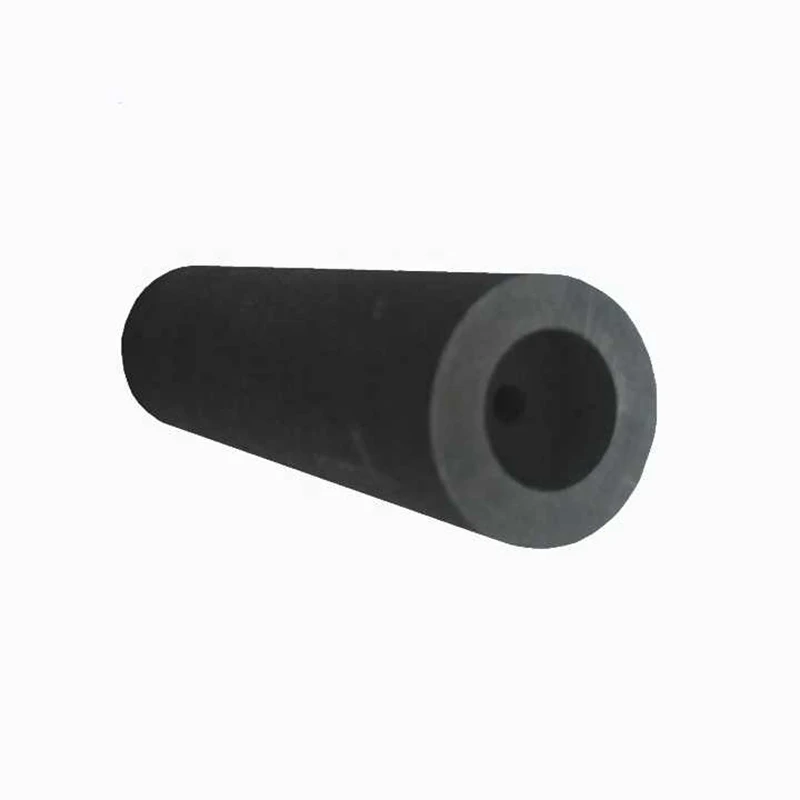

High-power graphite electrode
HP TECHNICAL PARAMETERS (mm)Nominal Diameter (mm)Nominal Diameter Item Unit YB/T4090 Industry Standard) HP (Measured Value) 200\400 450\500 600\700 600\700 450\500 450\500 Electric Resistivity Electrode μQM ≤7.0 ≤7.5 ≤7.5 5.6-6.5 5.8-6.7 5.8-6.8 Nipple ≤6.3 ≤6.3 ≤6.3 3.5-4.3 3.5-4.2 3.5-4.2 Bulk Density Electrode g/cm³ ≥1.60 ≥1.60 ≥1.60 1.7.-1.75 1.72-1.74 1.70-1.72 Nipple ≥... -
Ultra-high power graphite electrode
UHP TECHNICAL PARAMETERS (mm)Nominal Diameter (mm)Nominal Diameter Item Unit YB/T4090 Industry Standard) UHP (Measured Value) 300\400 450\500 550\600 700\800 350\400 450\500 550/650 650/700 Electric Resistivity Electrode μQM ≤6.2 ≤6.3 ≤6.0 ≤5.8 4.5-5.8 4.5-5.8 4.5-5.6 4.5-5.2 Nipple ≤5.3 ≤5.3 ≤4.5 ≤4.3 3.4-3.8 3.4-3.8 3.4-3.8 3.0-3.5 Bulk Density Electrode g/cm³ ≥1.67 ≥1.66 ≥1.66 ≤1.68 1.73-1.75 1.70-1.73 1.70-1.72 1.70-1.72 Nipple ≥1.7... -

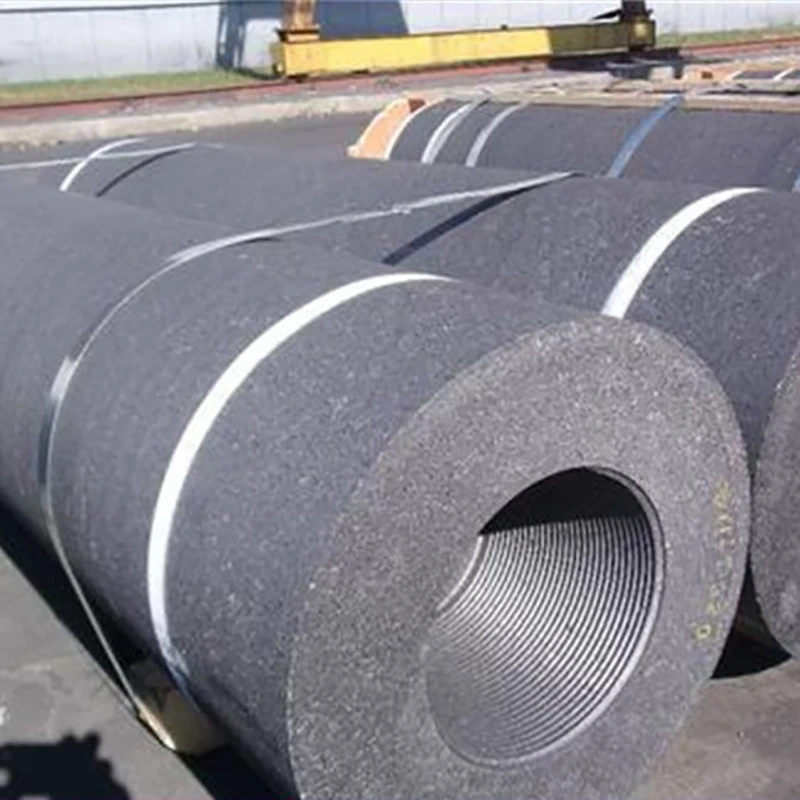

Extra Large Graphite Electrode
Product Name Extra Large Graphite Electrode Origin Handan, Hebei Model RP, HD,HP,SHP,UHP Type Graphite electrode block Application Steel Making Length 1600~3000mm Grade Maximum battery capacity Coefficient of thermal expansion 1.5 - 2.8 X10-6 / (100-600 ) Nipple 3TPI/4TPI/4TPIL Superiority Low Consumption Rate Flexural Strength (N/㎡) 8-12 Mpa Thermal Expansion 1.5 - 2.8 X10-6 / (100-600 ) Apparent Density 1.58 - 1.76 G/cc ... -
Regular Power Graphite Electorode
RP graphite electrodes are a widely used product that provides important benefits to the steel industry. Low resistance leads to low energy consumption during the smelting process. This feature helps to reduce costs and improve efficiency, making it a cost-effective product.
