Cutting graphite can seem daunting, but with the right machine, tools, and techniques, it’s a manageable process. This guide will cover everything you need to know about cutting graphite, including using a drill, saw, and CNC machine to shape graphite blocks. We’ll also delve into safety precautions, different grades of graphite, and tips for getting the best results. Whether you’re a seasoned professional or a curious hobbyist, this article is worth reading because it provides practical advice and insights.
1. What is Graphite and Why Cut It?
Graphite is a remarkable form of carbon, known for its excellent conductivity, high thermal resistance, and self-lubricating properties. These characteristics make it ideal for a wide range of applications, from graphite blocks used in industrial furnaces to electrodes in electrical discharge machining (EDM). Understanding why you’re cutting graphite will help you choose the right tools and techniques. Graphite’s unique properties make it essential in industries like steel manufacturing, where graphite electrodes are used in electric arc furnaces. It is also used in foundries and other metallurgy companies. It’s a fundamental material in the manufacturing world.
2. Selecting the Right Cutting Machine for Cutting Graphite: Which Machine is Best?
Choosing the right machine is crucial for successful cutting graphite. The best machine for you depends on the size, shape, and complexity of your project. For simple cuts, a saw or drill press might suffice. For more intricate designs and precise dimensions, a CNC machine is the preferred option.
Consider these factors:
- Accuracy: CNC machines offer the highest precision.
- Material Thickness: Ensure your machine can handle the thickness of your graphite blocks.
- Complexity: Complex shapes and designs require CNC capabilities.
- Volume: For large-scale projects, a CNC machine or saw with automated features can save time.
- Budget: Costs vary significantly between machines.
You can use a machine such as a CNC machine to shape graphite blocks into molds. In many cases mold making requires the machine to handle the extreme heat the material will be subject to.
3. Drilling Graphite: Precision and Techniques. How to Use a Drill?
Drilling graphite requires a careful approach to avoid chipping and breakage. The drill is a versatile tool for creating holes in graphite blocks. Start with a sharp drill bit, preferably a carbide or diamond-tipped one, as these are more resistant to wear. The choice of drill bit is the most important decision to get a drill done correctly. HSS drill bits can also be used, but they may dull more quickly due to the abrasive nature of graphite.
- Slow Speed: Use a slow drill speed and apply gentle, even pressure.
- Pilot Hole: Start with a small drill bit to create a pilot hole.
- Lubrication: Using lubrication can help.
- Cooling: Keeping the graphite damp with a liquid such as water will aid the drill.
When drilling graphite, the dust generated is a potential health hazard. Always wear a respirator and work in a well-ventilated area. Consider using a vacuum to suck up the graphite dust as you drill. If you’re drilling graphite frequently, you may consider investing in a shop vac. It is not a particularly dangerous material, but it is messy but not particularly harmful, always checked the mds material data.
High-strength graphite tile.
4. Sawing Graphite Blocks: Blades and Best Practices. How to Use a Saw?
Sawing graphite blocks involves using a saw to make straight cuts. A band saw is often used for this purpose. Graphite is abrasive, so you’ll need a blade designed for hard materials.
Here are some tips for sawing:
- Blade Selection: Choose a blade with carbide or diamond teeth.
- Slow Feed Rate: Avoid forcing the blade.
- Lubrication: Some users recommend using lubrication to cool the blade and reduce dust.
A band saw is a great way to do some initial cutting graphite work.
You can use cutting graphite in several ways, with the saw is one of them, The saw is also an example of a machine you can use. If you use a band saw, you should always remember to use blade lubricants to improve your ability to cut my graphite.
5. CNC Machining Graphite: Accuracy and Efficiency. How is a CNC Machine Used?
CNC machining offers the highest level of precision when cutting graphite. CNC machines use computer-controlled tools to create complex shapes and intricate designs. This is a very important step for most industries using graphite.
To use a CNC machine effectively:
- Programming: Create a CNC program that dictates the movements of the cutter.
- Tooling: Select the appropriate carbide cutters for the job.
- Fixturing: Secure the graphite blocks firmly to the machine bed.
- Cutting Parameters: Set the feed rate, speed, and depth of cut for optimal results.

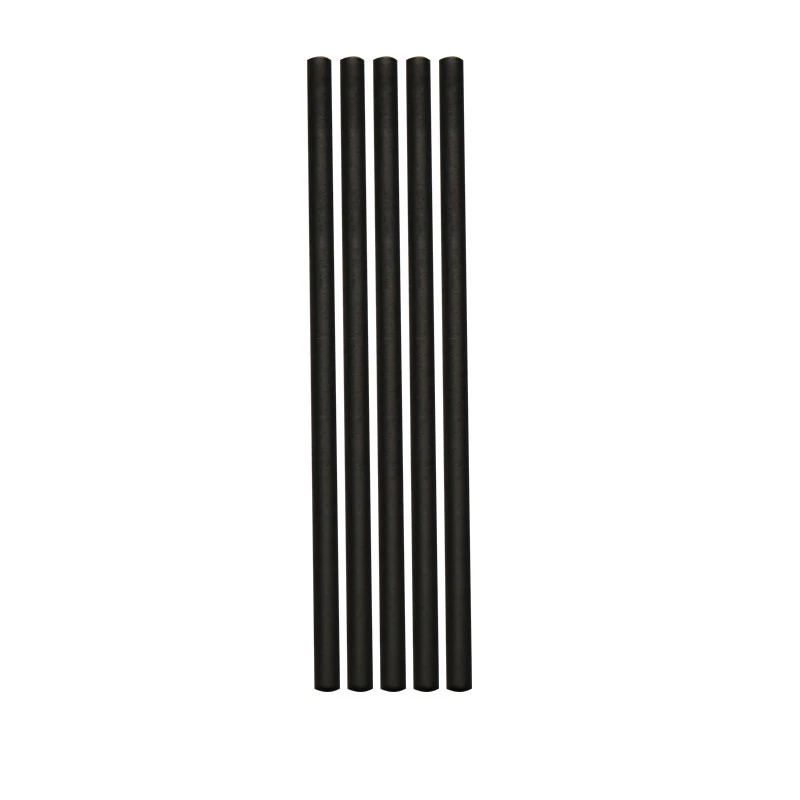

Conductive graphite rod for electrodes.
The CNC machine can be used to drill a hole into the graphite, or to cut graphite. Remember that the machine must be very accurate.
6. Managing Graphite Dust: Safety First. What are the Dangers of Graphite Dust?
Graphite dust is a byproduct of cutting graphite. As the graphite is abrasive, it’s imperative to take safety precautions to protect your health.
- Respirator: Always wear a respirator with a P100 filter to prevent inhaling graphite dust.
- Ventilation: Work in a well-ventilated area, or use a local exhaust system.
- Vacuum: Use a vacuum cleaner with a HEPA filter to remove graphite dust.
- Personal Protective Equipment: Wear eye protection and gloves.
- Cleaning: Regularly clean your work area to prevent the buildup of graphite dust.
Many recommend that the dust masks are very important, but the vacuum is even better, as it removes the dust completely. Some recommend cleaning the dust with a shop vac. Some guys tell you to be extremely careful.
7. Different Grades of Graphite: Choosing the Right Material. What are the Different Grades of Graphite?
There are different grades of graphite, each with unique properties suitable for various applications. The grade you choose will significantly impact your results. Some examples of grades are:
- UHP (Ultra-High Power): Used in electrodes for electric arc furnaces.
- HP (High Power): Also used in electrodes, offering a balance of performance and cost.
- RP (Regular Power): A more economical option for less demanding applications.
- Fine-Grain Graphite: Used for molds and other applications requiring high precision.
- Isostatic Graphite: This form is uniform in all directions and good for high-temperature applications.
Knowing the properties of each graphite grade is essential for selecting the right material for your project. Choosing the right different grades of graphite is important for both your product, the cost, and the way the product will act. Many things depend on the different grades of graphite.
High-strength graphite block.
8. Lubrication and Cooling: Preventing Problems. Why is Lubrication Important?
Cutting graphite can generate heat and friction, which can damage your tools and affect the quality of your cuts.
- Lubrication: Use a cutting fluid specifically designed for hard materials or water-based coolants. Lubrication helps to reduce friction, cool the blade, and extend its life.
- Cooling: Cooling the graphite itself, when possible, can also help. Using a mist cooling system to keep the graphite damp can reduce dust and improve cut quality.
Lubrication helps the process of cutting graphite. Without lubrication, you’re very likely to have issues when you’re cutting graphite.
9. Best Practices for Working with Graphite. How to Work with Graphite?
Here are some general best practices for working with graphite:
- Secure the Graphite: Make sure to secure the graphite firmly to the machine bed or work surface.
- Sharp Tools: Use sharp, high-quality tools to avoid chipping and breakage.
- Slow and Steady: Work at a slow, controlled pace.
- Inspect Regularly: Check your tools and the graphite regularly for signs of wear or damage.
- Experiment: Don’t be afraid to experiment with different techniques and settings to find what works best for your project.
- Test: Perform test cuts on scrap graphite before working on your final project.
If you are making an electrical component or an electrical system, graphite will conduct electricity.
10. Finding a Reliable Supplier: Where to Buy Your Graphite. Where Can You Buy Graphite?
Finding a reliable supplier is crucial for accessing high quality graphite and ensuring a consistent supply.
- Online Marketplaces: You can find a wide range of graphite products from various suppliers on online platforms.
- Exhibitions: Trade shows and exhibitions are great places to meet suppliers.
- Direct Contact: Contact manufacturers directly to discuss your needs.
- Request Samples: Request graphite samples to assess the quality before placing a large order.
When choosing a supplier, consider:
- Quality: Check for certifications and quality control processes.
- Experience: Choose a supplier with a proven track record.
- Pricing: Compare prices from different suppliers.
- Customer Service: Ensure the supplier offers responsive customer support.
If you’re looking for a supplier I recommend that you check our: Graphite Electrodes, High-power graphite electrode and High-strength graphite block
In summary, here are the key takeaways for cutting graphite:
- Choose the right machine and tools for the job, considering accuracy and complexity.
- Prioritize safety by using a respirator and working in a well-ventilated area to manage graphite dust.
- Select the appropriate grade of graphite based on your application’s requirements.
- Use lubrication and cooling to reduce friction and heat.
- Work slowly and carefully, securing the graphite and regularly inspecting your tools.
By following these guidelines, you can confidently tackle any cutting graphite project and achieve excellent results.
